Polyester FabricCalandra Roll Heat Press Sublimation Printing Machine

FOB Reference Price:Get Latest Price
$8,645.00 - $9,100.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
BB42170
Gross Power:
28kw
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 7 15 20 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Heat Transfer
Applicable Industries:
Garment Shops, Manufacturing Plant, Printing Shops, textile industry
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Turkey, France, Peru, Mexico, Malaysia, South Korea, Sri Lanka
Showroom Location:
Canada, Italy, Brazil, India
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Bearing, Motor
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Brand Name:
Best
Usage:
Cloths Printer, Mug, Rug, Mat, Sportswear
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
110v / 220 / 380v
Dimensions(L*W*H):
4.5*2.5*1.2m
Weight:
1400kg
Certification:
CE
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year
Key Selling Points:
Multi Color
Product name:
Polyester FabricCalandra Roll Heat Press Sublimation Printing Machine
Model:
BB42170
Machine Type:
Manual loading and unloading fabric
warranty:
one year
Transfer Size:
Depends on your fabric
Usage on:
Clothing / Rugs / Mats / Curtains / Sportswear
Printing speed:
80-120m /h
Brand:
Best
Material:
DuPont blanket / imports components
Packing:
Wooden Pakage
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
As for Polyester FabricCalandra Roll Heat Press Sublimation Printing Machine

Normal Packing: Film covering + Wooden case
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 7 15 20 To be negotiated

Polyester FabricCalandra Roll Heat Press Sublimation Printing Machine

Samples of Fabric

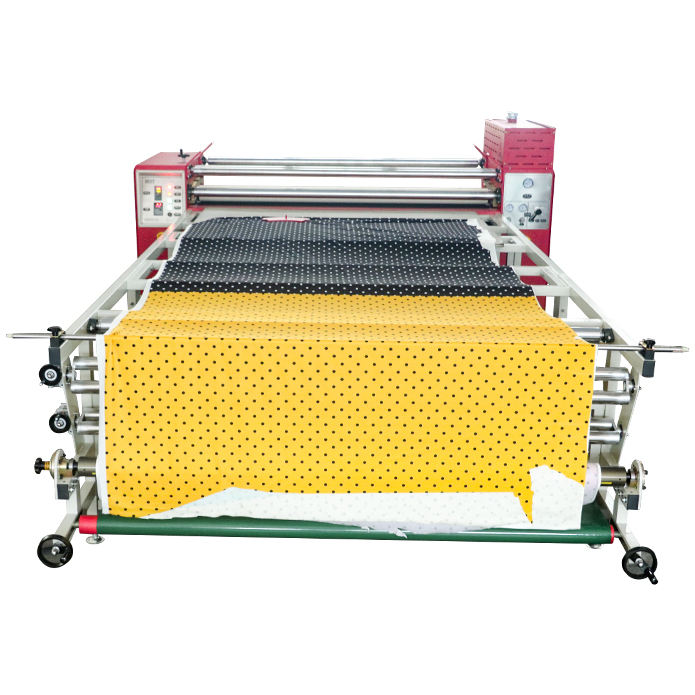

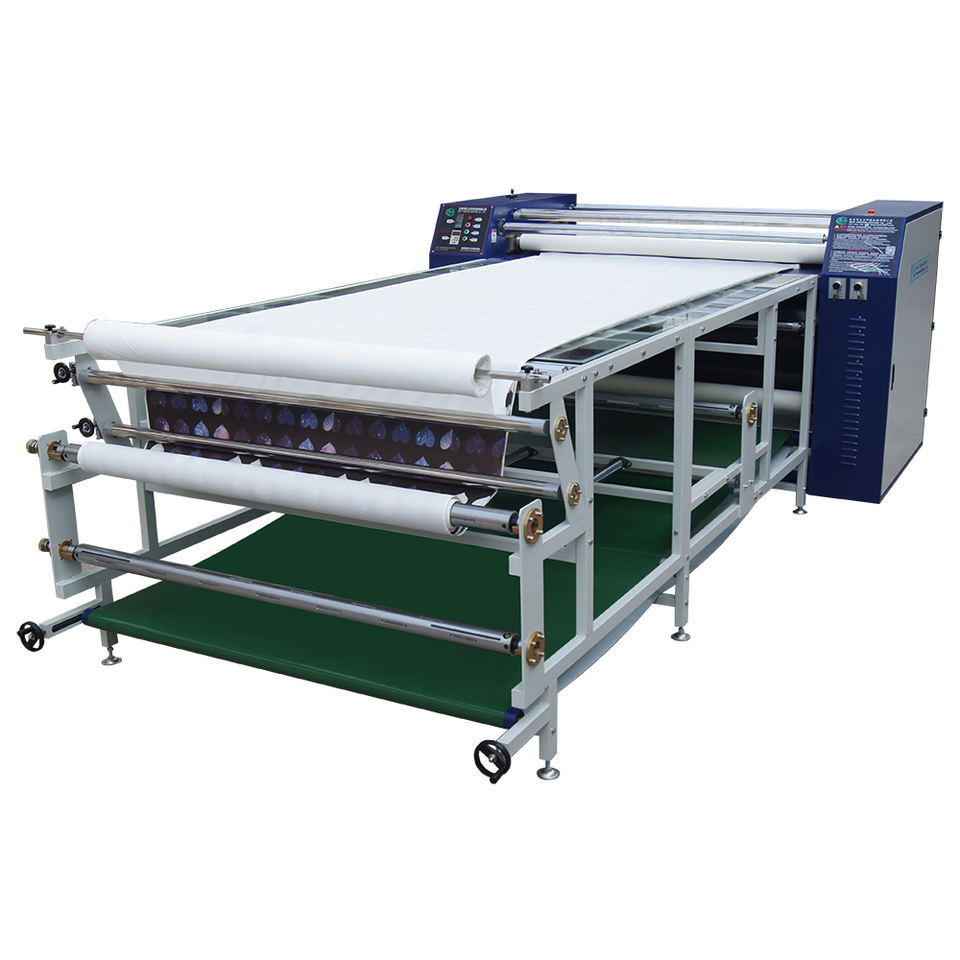

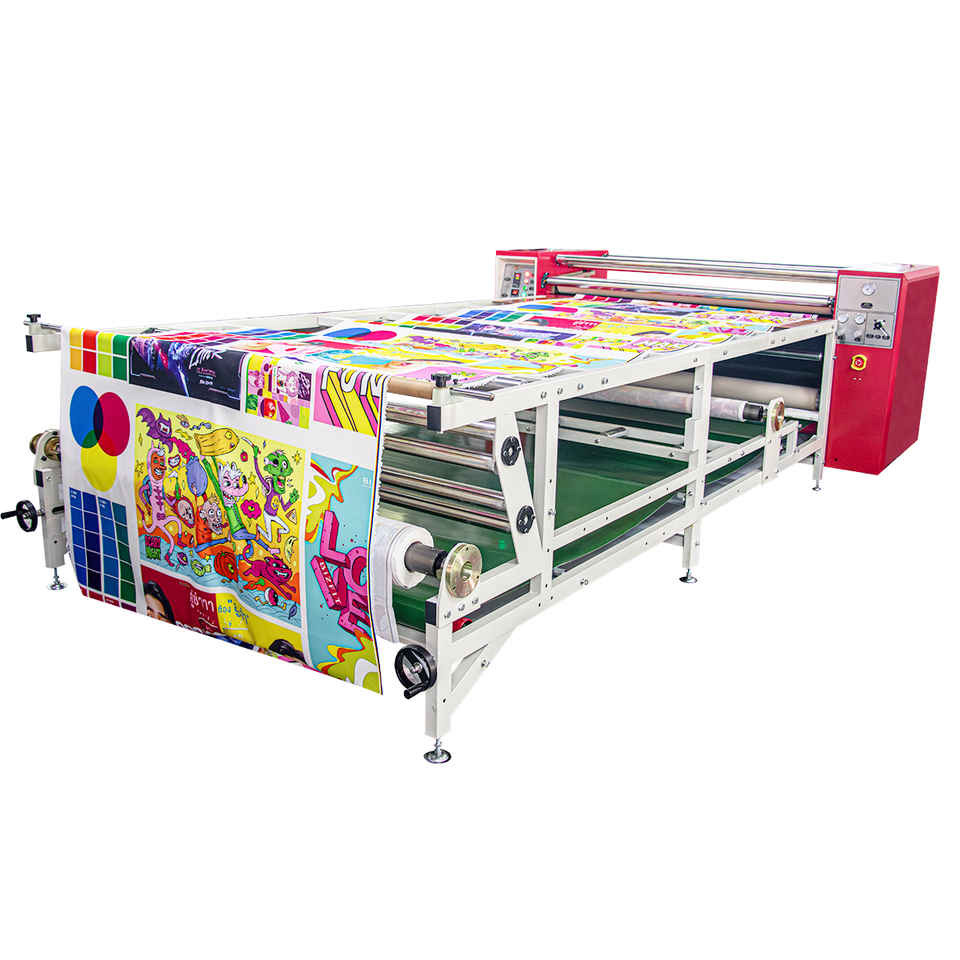

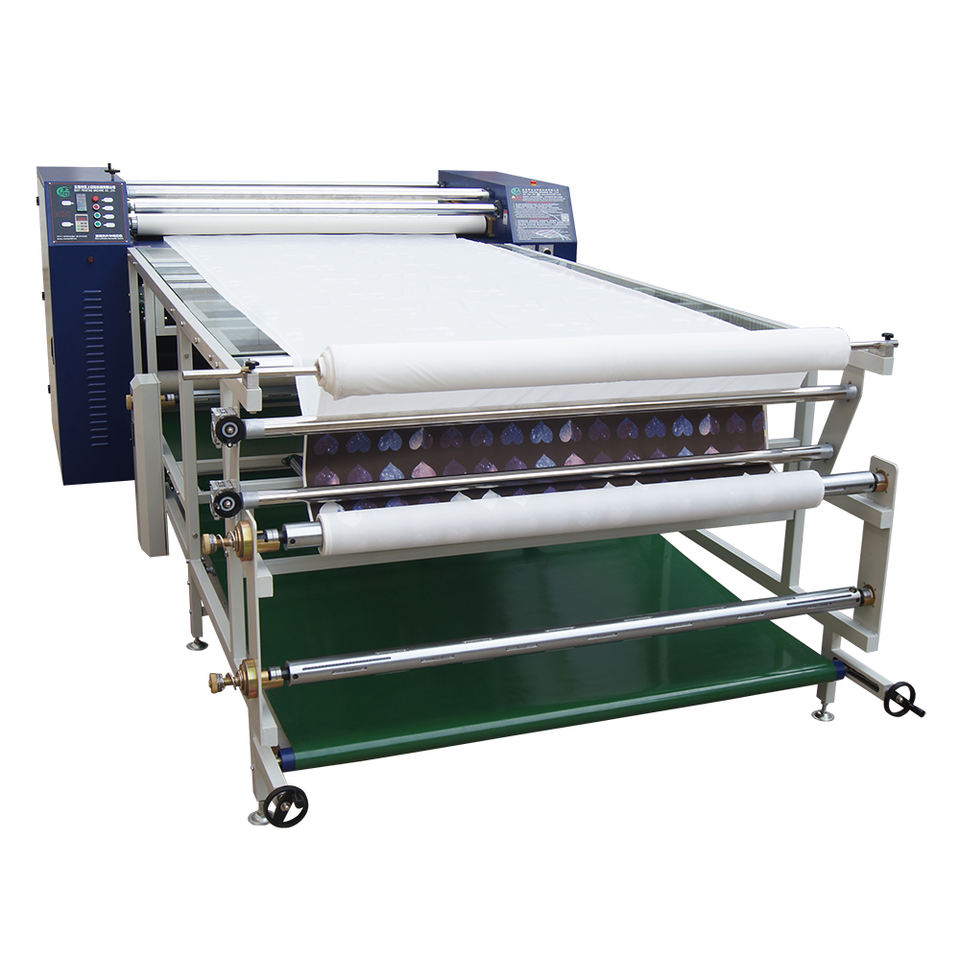

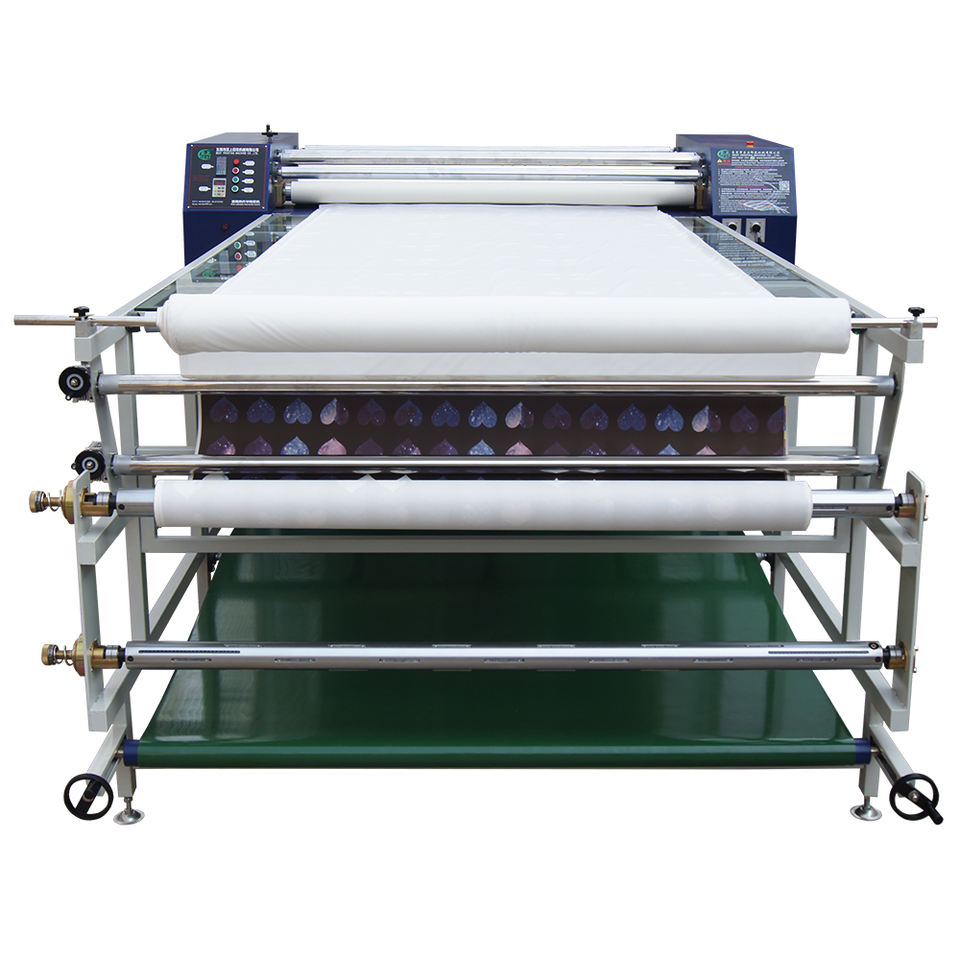

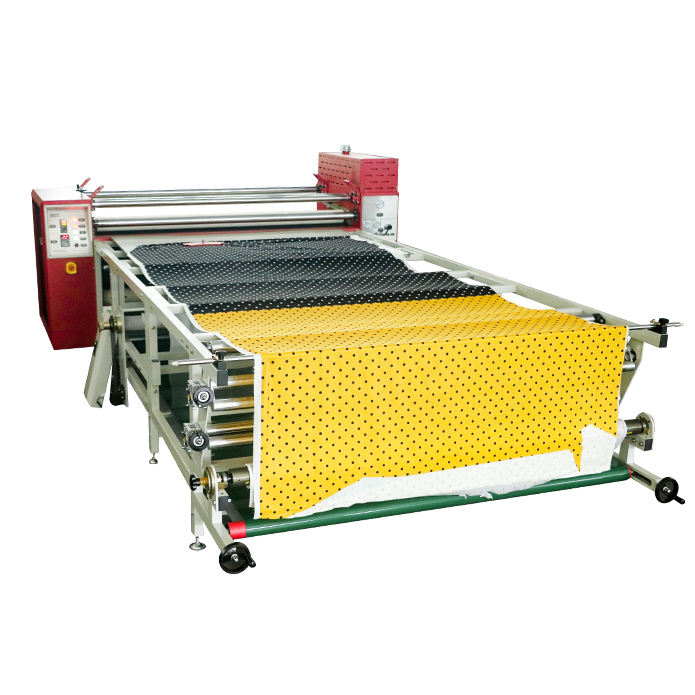

Machine display



Product Description
Name  Polyester FabricCalandra Roll Heat Press Sublimation Printing Machine
Model  BB42170
Diameter  420MM
Width  1700MM
Voltage  110v / 220v / 380V
Power  25kw
Temperature  0-400°C
Speed/hr  80-120m/h
Packing size  2.75*1.1*1.49m
N.W  1400kg
Printing Solution



If you’re looking for high-quality sublimation equipment that can increase efficiency and maximize productivity within your company, then you should choose our manufacturing. We specialize in creating superior sublimation machinery that is built to last and able to withstand the unique demands of your industry. Featuring a heavy-duty unitized frame and utilizing all of the latest technology, our heat transfer machines are made to always perform perfectly, even through unusually long shifts. Whether you’re a manufacturer of apparel, furniture, sporting equipment, trade show graphics, soft fabric signage, or more, we can provide you with durable, long-lasting sublimation transfer machinery. That is sure to meet and exceed your expectations.



Advantages of our equipment

1. 10mm US blanket, with good transfer performance.

2. Aluminum alloy inflatable shaft.

3. Customizable machine shapes/ size / logo ect.

4. Imported electrical components.

5. One year warranty.





Why choose us?

1. More than 13 years of experience in research and development textile printing machine.

2. Technology support

3. Customizable machines

4.Professional team and best after-sales service.







Packaging & Shipping





Production time: 7-10 days





FAQ

1. Why use oil conduction heating technology?

     Roller sublimation printing machine commonly adopt the design of heating tube inside the tube, heating tube power generation after heat, heat will be around the radiation, the use of heat transfer oil as a medium, high heat transfer efficiency and uniformity. The machine is running, the heat transfer oil is always located in the lower part of the roller and a steady stream of heat transfer to the roller surface.

   The heat-conducting oil has the property of resisting thermal cracking and chemical oxidation, has good heat-transfer efficiency, fast heat-dissipation and good thermal stability. A very high operating temperature is obtained at almost atmospheric pressure. Which can greatly reduce the high-temperature heating system operating pressure and safety requirements and improve the system and equipment reliability;

But the heat transfer oil as a heat transfer medium also has a significant drawback: in the case of system leakage, heat conduction oil and flame encounter when there may be burning, so how to improve the heat transfer oil sealing space welding quality is the key technology of roller printing machine





2. What is the composite roller manufacturing technology?

     The heat transfer oil inside the roller is injected through the oil hole at the end and closed after injection. Because of the limitation of the injection method, the heat transfer oil in the roller can only occupy 50% of the inner cavity of the roller. Resulting in a difference in temperature between the upper roll and the lower roll. To this , Best printing machinery develop composite roller manufacturing technology. A sub-cylinder is welded inside the roll so that an annular region is formed between the sub-roll and the mother roll, which will occupy 75% of the cavity. The temperature difference between the upper and lower portions of the roll is remarkably reduced, and the transfer quality is further controlled.

   While the number of heating pipe immersed in heat transfer oil also increased, the efficiency of heating has also been significantly improved.



3. Roller diameter and the relationship between the speed of the machine?

     The same angular velocity, in different diameter will produce different line speed, the greater the diameter, the greater the line speed, which is to improve the transfer speed and efficiency of the most simple way. BEST  printing machinery can manufacture 420mm, 610mm, 800mm or even larger diameter roller to meet the stringent requirements of the efficiency of the user. The larger the diameter of the roller is also easy to avoid frequent graphic splicing, reducing labor intensity, which is the user in recent years, the demand for large diameter roller causes soared. The greater the diameter of the roller, the higher the accuracy of the processing equipment, the current domestic production of more than 610mm diameter of the plant can be counted on one's fingers.



4. Roller transfer machine security?

Roller transfer machine is a high-temperature high-voltage high-power electrical equipment, if the manufacturing quality, but off, it is easy to cause fire, electric shock, or even hurt the accident. Best  printing machinery for other domestic brands a number of security incidents, increasing the welding technology, leakage protection technology, rolling tips and a large number of advanced technology input and application of the domestic roller transfer machine security records have been Keep it low. BEST Printing machinery is the supremacy of the State Transfer Technical Standards Committee invited to discuss the standard of the only Pearl River Delta manufacturing units





5. Roller chrome-plated and Teflon-plated difference?

Roller seamless steel pipe made by turning, in order to improve its surface finish, usually to be chrome-plated. Chromium layer smooth, high hardness, long life, especially for high-precision textile transfer, but because the chrome layer is smooth, the pressure of each roller once the line speed is different, easily caused by graphic distortion, color distortion quality problems, due to Electrostatic impact, chrome layer is also very easy to glue the textile debris, causing product graphics faint. To this end BEST printing machinery in the field of the introduction of roller manufacturing Teflon coating technology, Teflon coating with a certain degree of flexibility, easy to compensate for the pressure roller between the line speed difference, to avoid graphic distortion.



6. PVC conveyor belt and the difference between Teflon belt?

PVC conveyor belt with flat, smooth, not easy to heat, but easy to maintain the original state of textile after the transfer; Teflon conveyor belt with a network structure, easy to heat, but short life, light textiles easily lead to wrinkles. BEST  printing machinery PVC conveyor belt mainly for the user to provide a variety of textile transfer convenience. Users can choose according to their own needs.



Company Information







       Established in 2006;

        Professional engaged in fabric printing field ;

       Mainly Manufacture  Roller sublimation transfer machine, Inkjet printer, Ribbon sublimation transfer machine, Zipper sublimation transfer machine, Screen printing machine, Hot foil stamping machine Etc completely texile printing solution.







 2019. Shanghai printing exhibition, Guangzhou printing exhibition, Shenzhen printing exhibition





Our customers all over world
